PL-50 Wheelchair Lift | 50" Vertical Platform Lift for Home

Platform Lift

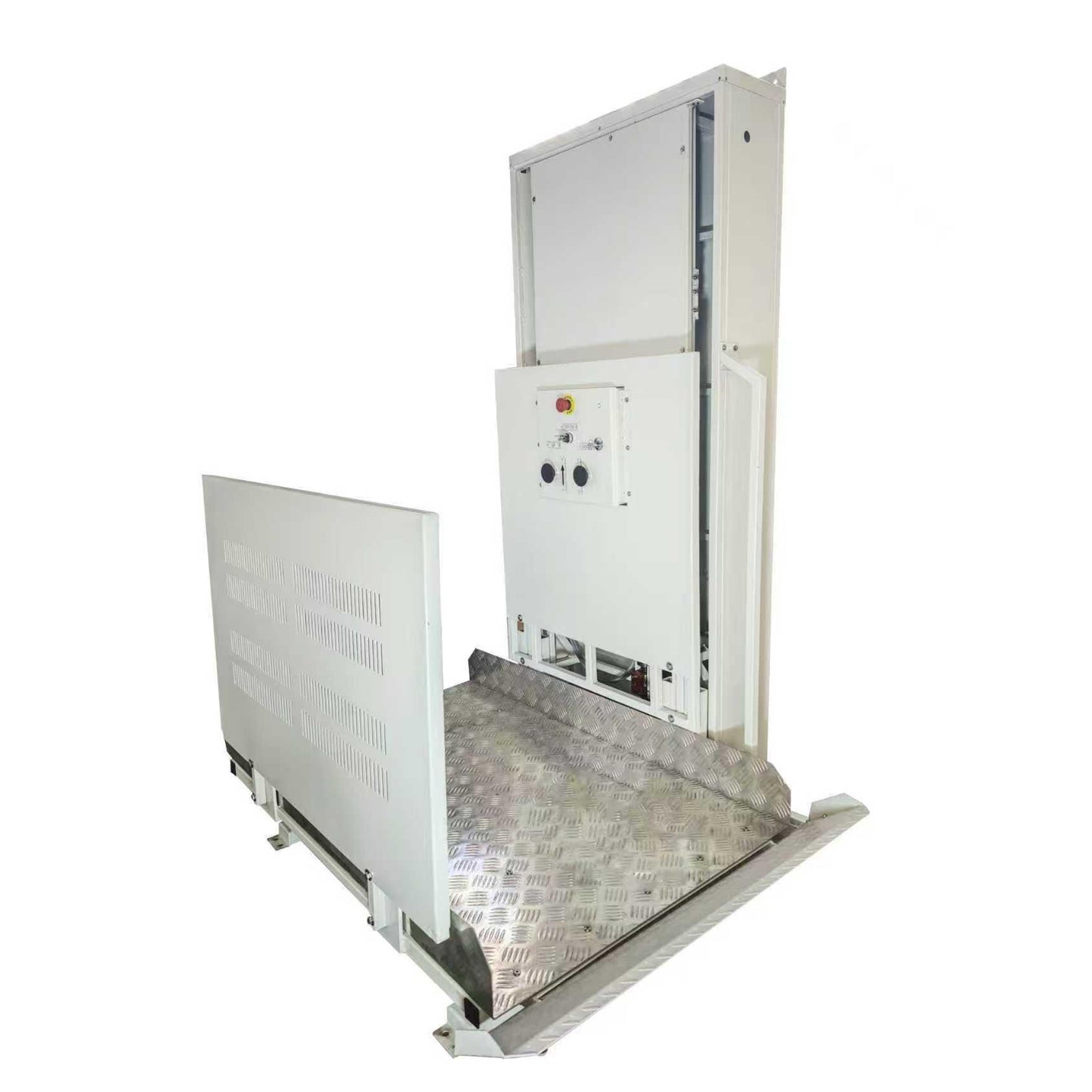

PL-52 Platform Lift – Residential Vertical Wheelchair Lift

The PL-52 Platform Lift by Elevate Home Mobility is a residential vertical platform lift designed to provide safe, reliable access between levels up to 52 inches. It's an ideal solution for porches, decks, garages, and raised entryways where ramps may be impractical.

Built for everyday home use, the PL-52 features a durable, weather-resistant design suitable for both indoor and outdoor installations. The spacious, non-slip platform and easy-to-use controls help users move between levels comfortably and confidently.

The PL-52 is available in straight-through or 90° access configurations, allowing it to fit a wide range of landing layouts and space constraints.

Vertical rise up to 52 inches
Residential wheelchair and mobility access
Available in straight-through or 90° access layouts
Durable construction for indoor or outdoor use

Residential Wheelchair Lift

PL-52 Residential Wheelchair Lift – 52" Vertical Platform Lift

The PL-52 wheelchair lift is a residential vertical platform lift designed to provide safe, dependable wheelchair access in residential environments. With a vertical travel height of up to 52 inches, this residential wheelchair lift is ideal for porches, decks, garages, and raised entryways where ramps may not be practical.

Built for both indoor and outdoor wheelchair lift installation, the PL-52 helps remove everyday barriers and supports greater independence, offering a practical home elevator alternative for moderate vertical travel needs.

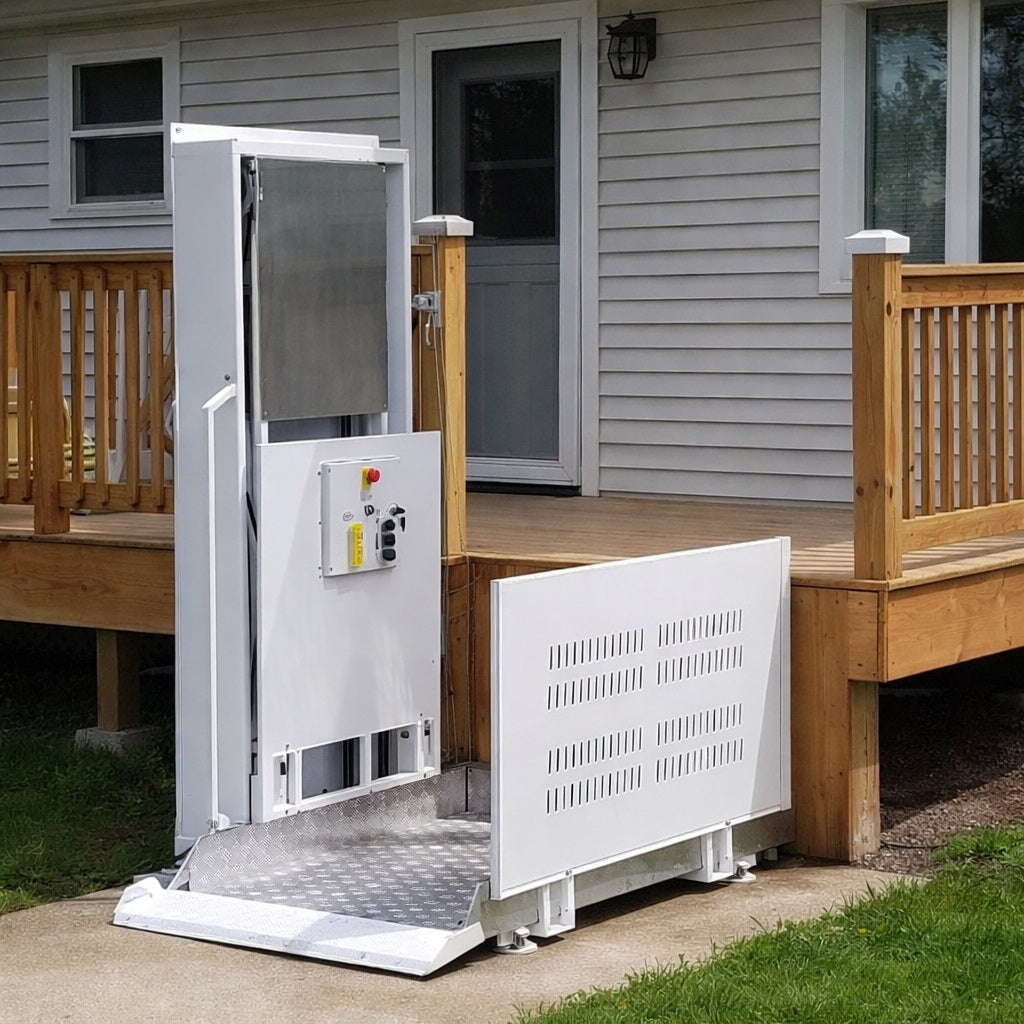

PL-52 residential wheelchair lift installed at home entry

PL-52 vertical platform lift screw drive system

Smooth Screw-Drive System for Residential Wheelchair Lift Operation

The PL-52 uses a screw-drive lifting system to deliver smooth, controlled vertical travel. Unlike chain-driven systems, the screw design provides consistent movement between levels with fewer exposed mechanical components.

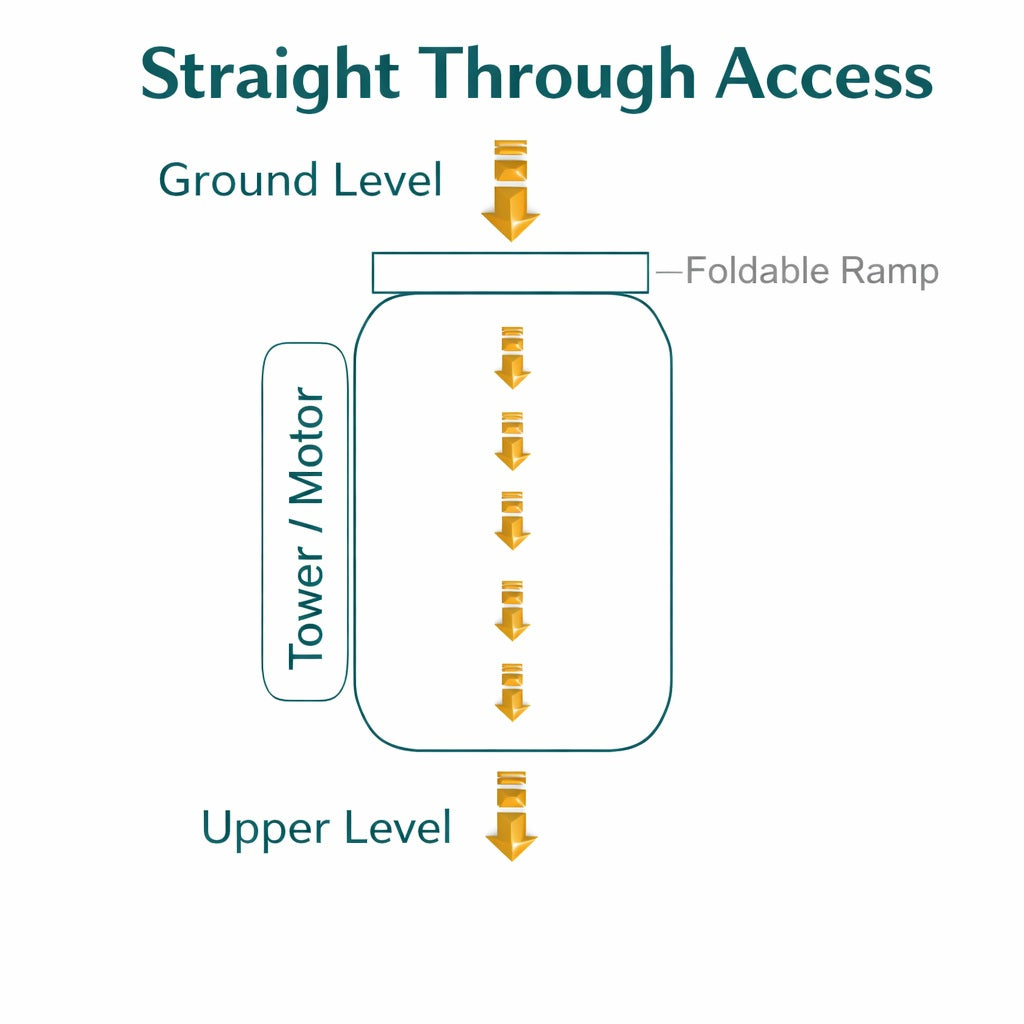

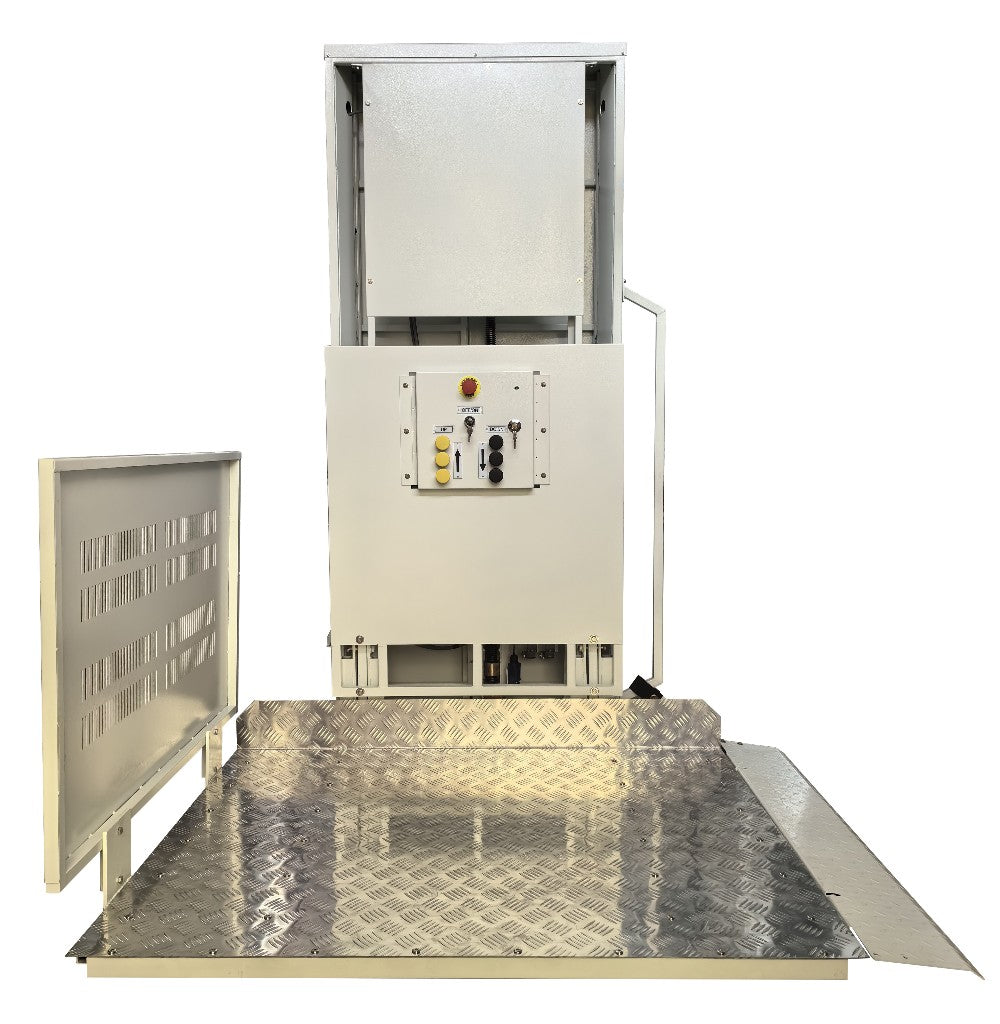

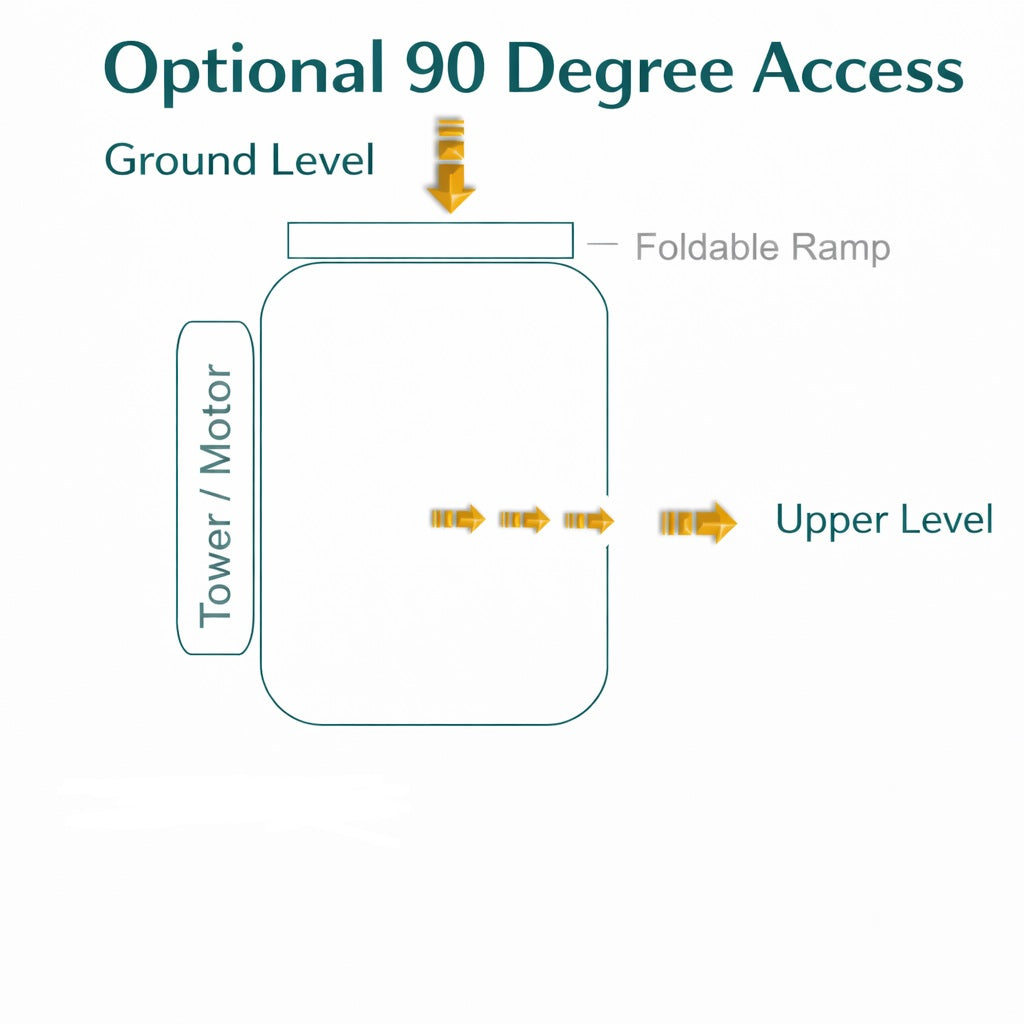

PL-52 wheelchair lift straight-through and 90 degree configuration

Flexible Entry & Exit Options

The PL-52 vertical platform lift is available in two access configurations:

Straight-Through – Enter and exit on opposite sides
90° Access – Enter and exit at a right angle

This flexibility allows the lift to adapt to a wide range of home layouts.

PL-52 residential wheelchair lift control panel

User-Friendly Controls for Safe Wheelchair Lift Operation

The PL-52 is equipped with clearly labeled, platform-mounted controls designed for everyday use. Multiple up and down buttons provide larger target areas, making operation easier and more intuitive for users.

PL-52 safety features on vertical platform lift

Built-In Safety Features for Residential Wheelchair Lifts

For added peace of mind, the PL-52 includes essential safety components such as a keyed lockout to prevent unauthorized use and an emergency stop control located on the platform.

PL-52 wheelchair lift limit switch mechanism

Redundant Limit Protection in Vertical Platform Lifts

The PL-52 is equipped with adjustable upper and lower limit switches to ensure consistent stopping at the desired height. Additional secondary limit components are included to provide an added layer of protection.

PL-52 optional battery backup for wheelchair lift

Backup Battery Available

The PL-52 operates on standard 120V AC power. An optional battery backup system is available to allow limited operation during power outages when properly equipped.

The PL-52 is a durable, space-efficient residential wheelchair lift designed for homeowners seeking a dependable vertical platform lift solution. Whether used as a porch lift, deck lift, or garage access lift, it provides safe and practical mobility support without the complexity of a full home elevator.

What's Included

Lift Tower
Control Panel
Safety Rails
Your Selected Platform
Wireless Remote
Installation Manual & Video

PL-52 Platform Lift Assembly Video

Please watch this PL-52 vertical platform lift video before beginning assembly or installation.

Watch Assembly Video

Frequently Asked Questions

A wheelchair lift, also known as a vertical platform lift, is a residential accessibility device that raises and lowers a wheelchair user between levels. It is commonly used for porch, deck, and garage access where ramps may be too long or steep.

The PL-52 vertical platform lift provides up to 52 inches of vertical rise, making it ideal for raised entryways, porches, decks, and small elevation changes around the home.

In many cases, yes. A residential wheelchair lift requires far less space than a ramp and provides a safer, more convenient solution for moderate height access. It is often chosen when space limitations make ramps impractical.

The PL-52 is not a traditional home elevator. It is a residential wheelchair platform lift designed specifically for accessibility. For moderate vertical travel, it serves as a practical and more affordable alternative to installing a home elevator.

Yes. The PL-52 wheelchair lift is designed for both indoor and outdoor installation and features durable, weather-resistant construction for reliable year-round performance.

The PL-52 platform lift supports up to 750 pounds, comfortably accommodating a wheelchair or power scooter along with the user.

No. The PL-52 is designed to install directly onto a flat surface without the need for a pit, shaft, or hoistway, which simplifies installation and reduces overall cost.

30-day no-questions-asked return policy icon

30-Day No-Questions-Asked Returns

We want you to feel confident in your decision. If your lift isn’t the right fit, you may return it within 30 days — no questions asked. Our team is here to help make the process simple and straightforward.

PL-52 Residential Wheelchair Lift – Vertical Platform Lift
